Get an Azure Event Hubs connection string

To communicate with an event hub in a namespace, you need a connection string for the namespace or the event hub. If you use a connection string to the namespace from your application, the application has the provided access (manage, read, or write) to all event hubs in the namespace. If you use a connection string to the event hub, you have the provided access to that specific event hub.

The connection string for a namespace has the following components embedded within it:

  • Fully qualified domain name of the Event Hubs namespace you created (it includes the Event Hubs namespace name followed by servicebus.windows.net)
  • Name of the shared access key
  • Value of the shared access key

The connection string for a namespace looks like:

Endpoint=sb://<NamespaceName>.servicebus.windows.net/;SharedAccessKeyName=<KeyName>;SharedAccessKey=<KeyValue>

The connection string for an event hub has an extra component in it, that is, EntityPath=<EventHubName>.

Endpoint=sb://<NamespaceName>.servicebus.windows.net/;SharedAccessKeyName=<KeyName>;SharedAccessKey=<KeyValue>;EntityPath=<EventHubName>

This article shows you how to get a connection string to a namespace or a specific event hub by using the Azure portal, PowerShell, or CLI.

Prerequisites

Azure portal

Connection string for a namespace

  1. Sign in to the Azure portal.

  2. In the search box at the top of the portal, enter Event Hubs, and then select Event Hubs from the results.

  3. In the list of Event Hubs namespaces, select your namespace.

  4. On the Event Hubs namespace page, select Shared access policies on the left menu under Settings.

  5. Select a shared access policy in the list of policies. The default policy is named RootManageSharedAccessKey. You can also add a policy with the appropriate permissions (Send, Listen), and use that policy.

  6. Select the copy button next to the Connection string-primary key field.

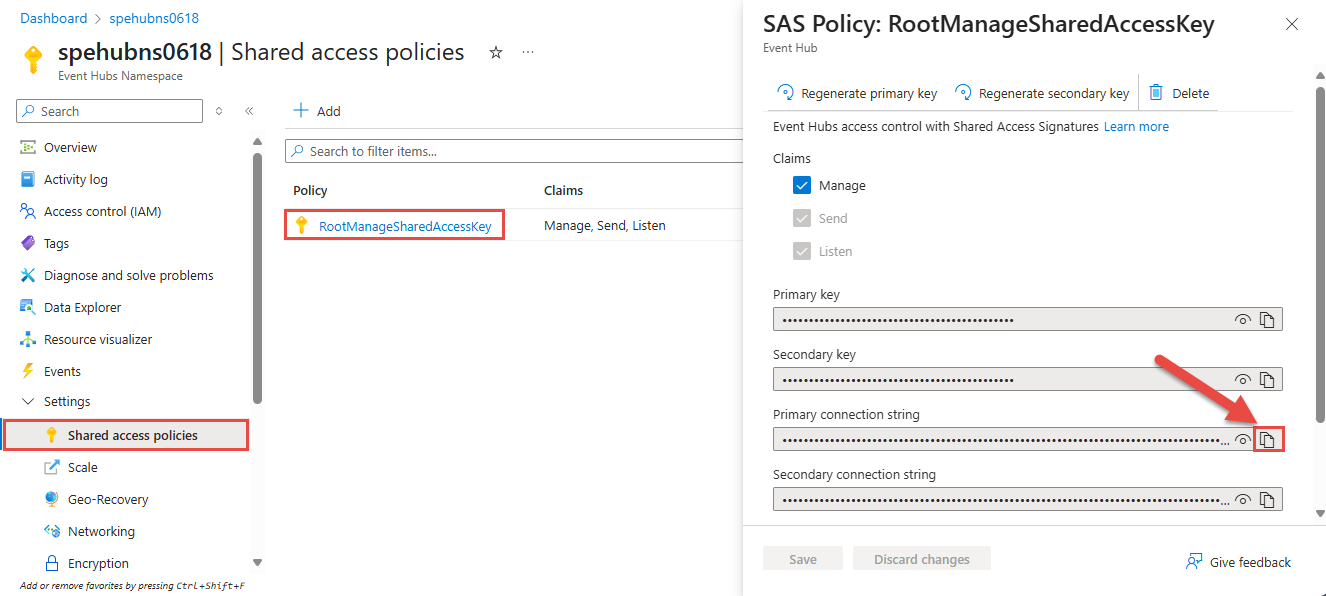

    Screenshot of Event Hubs - get connection string.

Connection string for a specific event hub in a namespace

This section gives you steps for getting a connection string to a specific event hub in a namespace.

  1. On the Event Hubs namespace page, select Event Hubs under Entities on the left menu, and then select your event hub.

  2. On the Event Hubs instance page, select Shared access policies on the left menu under Settings.

  3. There's no default policy created for an event hub. Create a policy with Manage, Send, or Listen access.

  4. Select the policy from the list.

  5. Select the copy button next to the Connection string-primary key field.

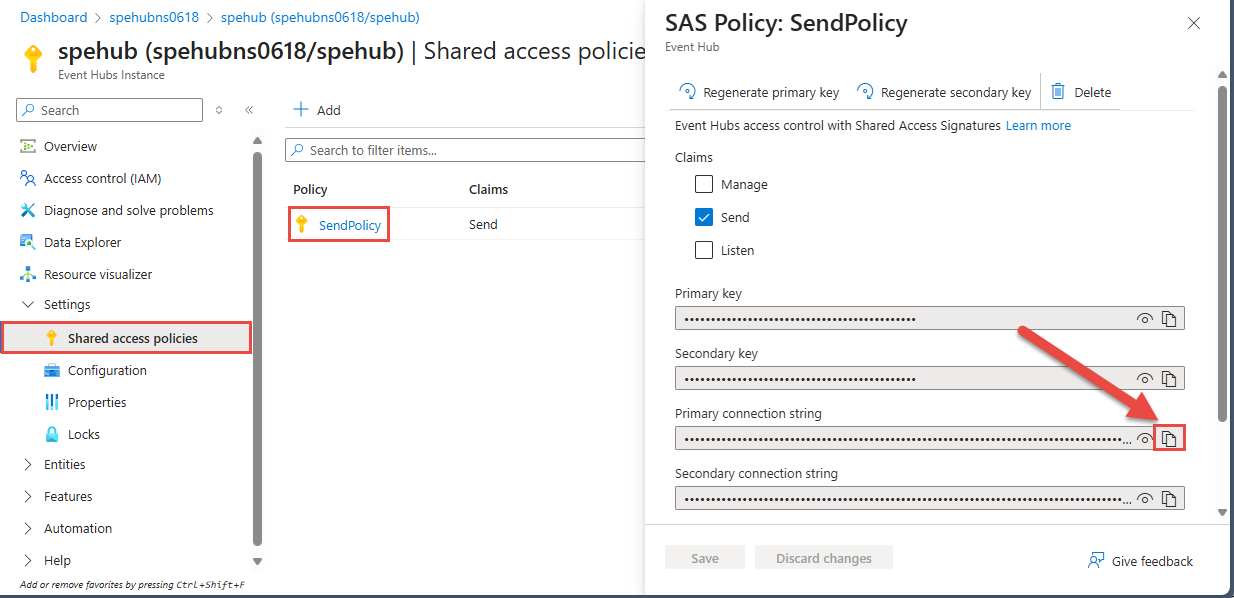

    Screenshot of connection string to a specific event hub.

Azure PowerShell

Use the Get-AzEventHubKey cmdlet to get the connection string for a specific policy or rule.

The following example gets the connection string for a namespace. MyAuthRuleName is the name of the shared access policy. For a namespace, the default policy is RootManageSharedAccessKey.

Get-AzEventHubKey -ResourceGroupName MyResourceGroupName -NamespaceName MyNamespaceName -AuthorizationRuleName MyAuthRuleName

The following example gets the connection string for a specific event hub within a namespace:

Get-AzEventHubKey -ResourceGroupName MyResourceGroupName -NamespaceName MyNamespaceName -EventHubName MyEventHubName -AuthorizationRuleName MyAuthRuleName

The following example gets the connection string for a namespace that's part of a Geo-disaster recovery configuration, by using its alias.

Get-AzEventHubKey -ResourceGroupName MyResourceGroupName -NamespaceName MyNamespaceName -AliasName MyAliasName -AuthorizationRuleName MyAuthRuleName

Azure CLI

The following example gets the connection string for a namespace. MyAuthRuleName is the name of the shared access policy. For a namespace, the default policy is RootManageSharedAccessKey.

az eventhubs namespace authorization-rule keys list --resource-group MyResourceGroupName --namespace-name MyNamespaceName --name RootManageSharedAccessKey

The following example gets the connection string for a specific event hub within a namespace:

az eventhubs eventhub authorization-rule keys list --resource-group MyResourceGroupName --namespace-name MyNamespaceName --eventhub-name MyEventHubName --name MyAuthRuleName

The following example gets the connection string for a namespace that's part of a Geo-disaster recovery configuration, by using its alias.

az eventhubs georecovery-alias authorization-rule keys list --resource-group MyResourceGroupName --namespace-name MyNamespaceName --alias MyAliasName --name MyAuthRuleName

For more information about Azure CLI commands for Event Hubs, see Azure CLI for Event Hubs.
