CosmosDB vCore M10 - Node storage 42GB with only ~300MB actual MongoDB data, growing daily — cannot inspect internals

Question

CosmosDB vCore M10 - Node storage 42GB with only ~300MB actual MongoDB data, growing daily — cannot inspect internals

Dipesh Khaiju 40

Environment:

Service: Azure Cosmos DB for MongoDB (vCore)
Tier: M10, currently on 64GB storage allocation
Region: South East Asia
Single shard cluster

Problem:

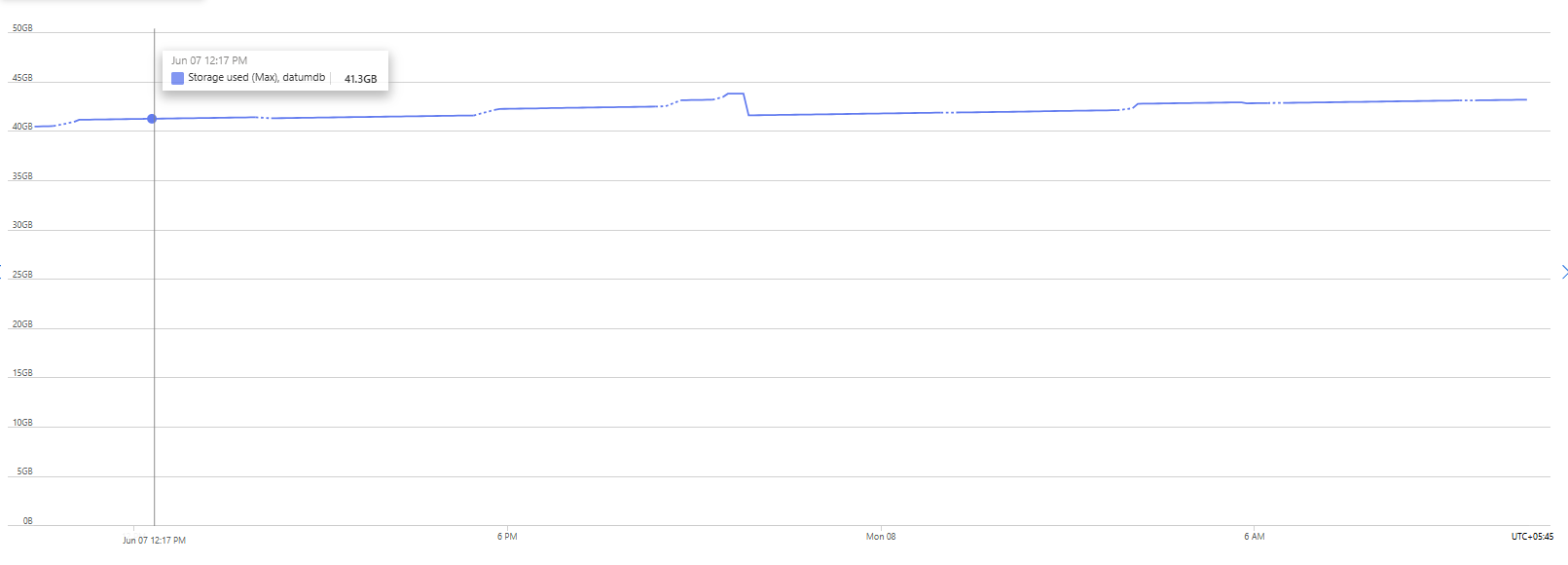

Azure Metrics → Storage Used → Split by ServerName shows

~42GB used on the primary node, growing approximately

500 MB per day with no significant changes to application data.

Actual MongoDB data verified via db.stats() and per-collection

stats in MongoDB Compass:

Database 1 (main application DB): ~300MB across 14 collections

Total logical MongoDB data: ~300MB

Azure node-level storage reported: ~42GB

Unexplained gap: ~41.7GB and growing daily

Collection breakdown (anonymized):

Largest collection: ~106MB, ~11,600 docs
Second largest: ~58MB, ~1,300 docs
Third largest: ~40MB, ~1,300 docs
Remaining 11: ~100MB combined
No GridFS collections (fs.files / fs.chunks are empty)
No logging collections
No binary/file data stored in documents

History:

Storage was 30GB when we first noticed, grew to 38GB, now 42GB.
Hit OutOfDiskSpace error (code 14031) despite only ~300MB MongoDB data at the time
Upgraded storage to 64GB as emergency fix — cluster recovered immediately
Storage has continued growing since: 30GB → 38GB → 42GB over approximately 2-3 weeks

Diagnostics attempted:

db.stats() and per-collection stats → confirms ~300MB real data
db.compact() on all collections → no effect on Azure storage
Checked all databases including local → empty
Checked oplog → empty
Audited application code → no accidental writes, no file storage in MongoDB, no logging to DB
Dropped unused empty databases → no effect on storage counter

Commands blocked on vCore (expected but limits diagnosis):

db.serverStatus() → MongoServerError: CommandNotSupported
Cannot inspect WiredTiger cache, journal stats, or checkpoint internals

Questions:

What is consuming ~41.7GB at the node level when MongoDB logical data is only ~300MB?
Microsoft docs confirm vCore storage includes "database files, temporary files, transaction logs, and database server logs" — is this normal for these components to consume 140x the actual data size?
Is this WiredTiger journal/checkpoint accumulation that failed to clean up? If so, can it be cleared from the backend?
Will this continue growing indefinitely or will it stabilize at some point?
Since storage can only be increased (not decreased) on vCore, is migrating to a fresh cluster the only way to reclaim this space? Or can Azure engineering intervene on the existing node?
Could the same issue recur on a fresh cluster given the same workload?

User's image

0 comments

Answer accepted by question author

0 additional answers

Your answer

Answer 1

Hi Dipesh,

Thank you for providing the detailed investigation and screenshots.

Based on the information shared, there is a noticeable difference between the logical MongoDB data size (~300 MB reported through db.stats() and collection statistics) and the node-level storage consumption (~42 GB) reported by Azure Metrics.

In Azure Cosmos DB for MongoDB (vCore), the Storage Used metric reflects overall storage consumption at the node level and is not limited to collection data alone. As documented, storage usage can include database files, temporary files, transaction logs, server logs, and other service-managed components in addition to the logical data stored in collections.

Because Cosmos DB for MongoDB (vCore) is a managed service, low-level storage engine diagnostics such as serverStatus() are not exposed. As a result, it is not possible from the customer side to determine the exact breakdown of the additional storage consumption.

The key observation here is that storage usage continues to grow over time despite the logical data size remaining relatively small and after maintenance operations such as compact(). This behavior warrants further investigation to determine whether the growth is related to internal storage allocation, retained service-managed files, or another backend condition.

To help narrow this down, could you please share the following details?

Is the storage growth observed only on the primary node, or across all nodes/replicas?
Approximately when did the OutOfDiskSpace (14031) error first occur?
Are there any recent scaling operations, failovers, maintenance events, or workload changes that coincide with the start of the growth trend?
What are the current values for Storage Percent and IOPS during the period of growth?

If the growth continues and cannot be correlated with application data growth, I would recommend opening a support request so the engineering team can review the backend storage allocation and identify the specific components contributing to the node-level disk usage.

Relevant documentation:

Azure Cosmos DB for MongoDB (vCore) monitoring metrics: https://learn.microsoft.com/azure/cosmos-db/mongodb/vcore/monitor-metrics
Compute and storage concepts for Azure Cosmos DB: https://learn.microsoft.com/azure/cosmos-db/compute-storage

I look forward to your update.

Pilladi Padma Sai Manisha 10,770 Reputation points Microsoft External Staff Moderator

2026-06-11T03:01:05.6133333+00:00

Hi Dipesh,
Following up to see if the below answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Answer 2

Hello Dipesh !

Thank you for posting on MS Learn Q&A.

Some difference between MongoDB logical data and Azure node level storage is expected because vCore storage is not only collection data. The provisioned storage is used for database files, temporary files, transaction logs and database server logs but a jump from around 300–350 MB visible MongoDB data to 42 GB node storage, growing by about 500 MB/day, is too large to treat as normal overhead without backend investigation.

https://learn.microsoft.com/en-us/azure/documentdb/compute-storage

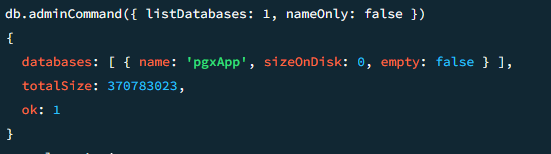

The key point is that db.stats(), collection stats and listDatabases.totalSize only prove that the visible MongoDB databases/collections are small. In your screenshot, totalSize: 370783023 is only around 354 MB, which confirms that the 42 GB is probably outside the visible collection data/index footprint or possibly a node level metric or accounting issue.

db.compact() not changing the Azure metric is also important and compact command targets collection or index storage by releasing obsolete blocks back to the OS when possible and it does not clean platform server logs, transaction logs, temporary files or service managed internal files.

The compaction effectiveness depends on how much releasable space exists and where it exists in the data files.

https://www.mongodb.com/docs/manual/reference/command/compact/

I recommend you to open an Azure support ticket.
