Slow performance of gpt-5.4-mini in PTUs

Hello @Antoine

Thank you for reaching out to Microsoft Q&A.

I understand why this behavior appears unexpected. Based on the benchmark data you referenced, GPT-5.4-mini operating with reasoning_effort='none' would appear to offer higher output throughput than GPT-4.1-mini, and increasing PTUs would typically be expected to improve performance consistency. However, the measurements you've shared suggest that the observed latency is likely influenced by factors other than available provisioned throughput alone.

Provisioned Throughput Units (PTUs) primarily control throughput and concurrency, rather than reducing the intrinsic latency of an individual request.

In practice:

• PTUs help absorb concurrent traffic and reduce queuing delays.

PTUs do not directly make a single inference request execute faster once the deployment is operating below saturation.

If a deployment is not constrained by available capacity, increasing PTUs may have little or no effect on p50 or p95 latency.

The pattern you observed aligns with this behavior:

At 15 PTUs, the deployment may initially have experienced capacity pressure, resulting in p95 values around 3–4 seconds.

Increasing to 30 PTUs likely reduced queuing and stabilized latency.

After returning to 15 PTUs, latency remained unchanged because the workload was no longer saturating the deployment.

This generally indicates that the current ~1.9s p95 is more likely related to model processing characteristics and workload composition rather than PTU availability.

Benchmark results versus real-world workloads

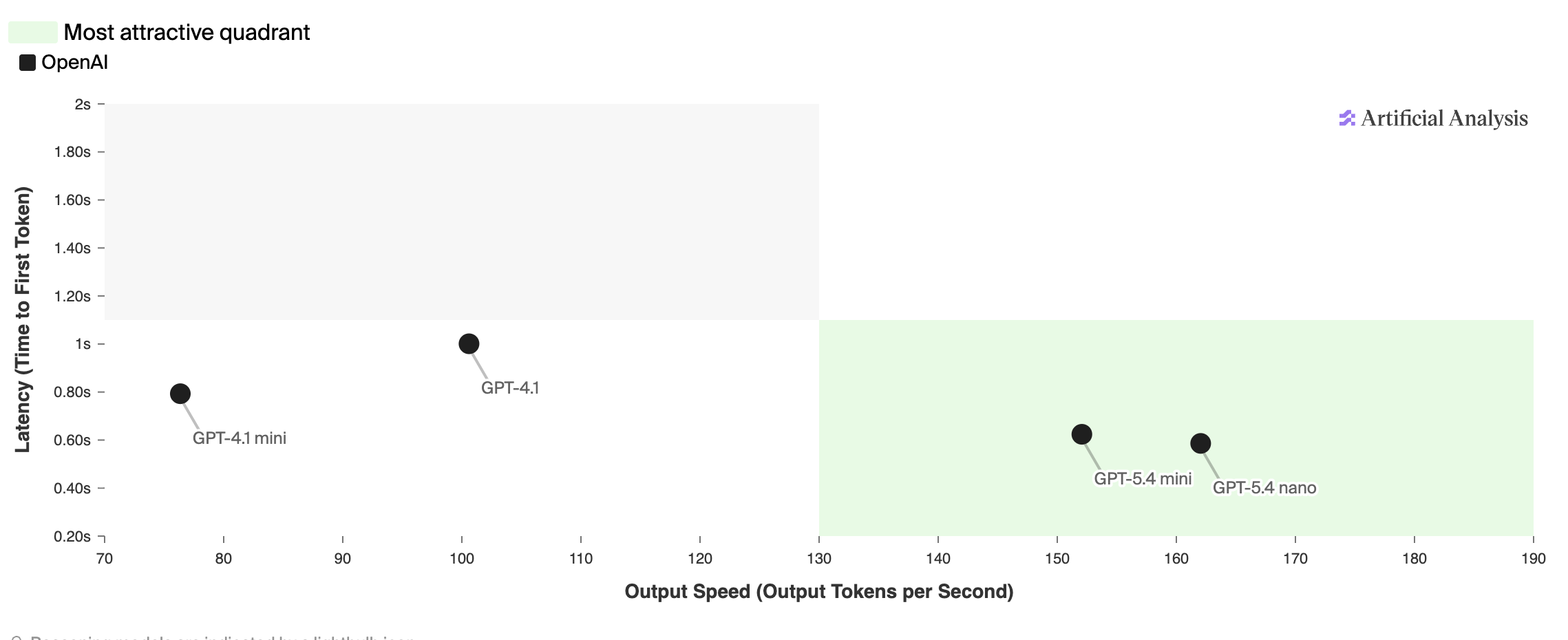

The Artificial Analysis benchmark is useful for directional comparison, but benchmark measurements are typically collected under highly controlled conditions and do not necessarily reflect production workloads.

Your workload differs from benchmark testing in several significant ways:

Streaming responses

Voice-screening workflow

Approximately 26,000-character system prompt

Custom application logic

Specific Azure region and deployment configuration

Real-world traffic patterns and concurrency

Metrics such as:

Output Tokens per Second

Time to First Token (TTFT)

cannot always be directly translated into expected end-to-end application latency.

Impact of the large system prompt

One factor that stands out is the size of the system prompt.

With a system prompt of approximately 26K characters, the model must:

Receive the prompt.

Tokenize the input.

Process the entire context.

Execute safety and orchestration checks.

Generate the first token.

Even with:

reasoning_effort = none

the prompt still needs to be fully processed before generation can begin.

For many workloads, especially those with relatively short responses, latency is often dominated by prompt processing (prefill time) rather than token generation speed.

Why GPT-5.4-mini may appear slower than GPT-4.1-mini

Although GPT-5.4-mini may achieve higher output token generation rates in benchmark scenarios, different models have different inference characteristics.

A model with higher steady-state generation throughput does not necessarily produce lower end-to-end latency.

In particular:

GPT-5.4-mini and GPT-4.1-mini use different architectures and optimizations.

TTFT can differ significantly between models.

Larger prompts increase prefill time.

Streaming workloads are often TTFT-dominated rather than generation-speed dominated.

This means GPT-4.1-mini can legitimately outperform GPT-5.4-mini for certain latency-sensitive workloads, even if GPT-5.4-mini produces tokens faster once generation begins.

According to Azure OpenAI performance guidance, latency can also be affected by:

Model type

Prompt token count

Completion token count

Regional service load

Request concurrency

Traffic bursts

Content filtering processing

Workload mixing across deployments

Azure OpenAI does not provide a fixed latency guarantee, and response times can vary depending on overall system conditions.

Recommended validation steps

To better isolate the source of latency, we recommend the following checks.

1. Review Azure Monitor metrics

Please compare GPT-5.4-mini and GPT-4.1-mini using Azure Monitor and split by deployment name.

Useful metrics include:

Time to Response (TTFT)

Time Between Tokens

Processed Prompt Tokens

Generated Completion Tokens

Request Count

Provisioned-Managed Utilization V2

Any throttling or rate-limit indicators

If Utilization remains well below 100% at 15 PTUs, that would strongly indicate the workload is not capacity-bound and that additional PTUs are unlikely to improve latency.

2. Compare prompt and completion token counts

Please validate:

• Actual prompt token count rather than character count
• Average completion token count
• Whether GPT-5.4-mini generates longer responses than GPT-4.1-mini

3. Measure TTFT separately from total response time

It would be helpful to determine whether the increase is occurring in:

Time to First Token (TTFT)

Token generation phase

Overall request duration

If TTFT accounts for most of the latency difference, prompt processing is likely the primary contributor.

4. Test with a smaller system prompt

As a controlled test, try reducing the system prompt from approximately 26K characters to a significantly smaller version and compare:

TTFT

End-to-end latency

Output throughput

This is often the most effective way to identify prompt-processing overhead.

If minimizing latency is the primary goal, the following optimizations are likely to have the greatest impact:

• Reduce the size of the system prompt where possible.
• Consider prompt caching for static prompt content.
• Continue using streaming responses.
• Set max_tokens appropriately for the workload.
• Avoid generating unnecessary completion tokens.
• Separate different workload types onto dedicated deployments.
• Review content filtering configuration if appropriate for the use case.

Please refer this

https://learn.microsoft.com/azure/ai-foundry/openai/how-to/latency (Performance and latency, throughput vs latency, factors affecting latency)

https://learn.microsoft.com/azure/ai-foundry/openai/concepts/provisioned-throughput (PTU concepts)

I Hope this helps. Do let me know if you have any further queries.

---

If this answers your query, please do click Accept Answer and Yes for was this answer helpful.

Thank you!

Hello Antoine,

Greetings! Thanks for raising this question in Q&A forum.

What you are seeing is a common misunderstanding about what PTUs actually control. PTUs guarantee reserved capacity so your calls do not get throttled or queued behind other tenants, they do not directly make a single call's raw compute time faster. Your actual latency per call is mostly driven by two separate things, prompt processing time (which depends heavily on your 26K character system prompt) and per token generation time. Since adding or removing PTUs did not change your p95 once you were no longer saturated, this points to a fixed cost from prompt processing and model behavior rather than a capacity problem. Comparing raw token-per-second numbers from a third party benchmark is also not the full picture, since those benchmarks usually run with much shorter prompts and different conditions than your production setup.

Here is how I would approach narrowing this down.

Separate TTFT from per token speed In the Azure portal, go to your Azure OpenAI resource, then Monitoring, then Metrics. Add Time To First Token (AzureOpenAITimeToResponse) and Time Between Tokens (AzureOpenAINormalizedTBTInMS), split by ModelDeploymentName. This tells you whether the slowness is coming from prompt processing (TTFT) or from token generation speed (TBT). Given your long system prompt, I would expect TTFT to be the bigger factor for gpt-5.4-mini compared to gpt-4.1-mini.

Check Processed Prompt Tokens Add the ProcessedPromptTokens metric as well. Larger prompts increase TTFT, and your 26K character system prompt is a meaningful prefill cost on every single call regardless of how many PTUs you have allocated.

Confirm whether prompt caching is helping If your 26K character system prompt is identical across most calls, make sure it is positioned first in your message list so Azure OpenAI can reuse cached prefix tokens. Cached tokens do not consume PTU capacity and significantly reduce prefill time, this matters a lot for long static system prompts like yours.

Watch Provisioned-managed Utilization Even though you said increasing PTUs helped once, check the Provisioned-managed Utilization V2 metric around the time of your tests. It is possible that scaling from 15 to 30 PTUs actually triggered a backend reallocation to a less congested placement, and that improvement carried over even after you scaled back down to 15, rather than the PTU count itself being the deciding factor.

Treat the benchmark numbers as a rough signal, not a guarantee Third party benchmarks like Artificial Analysis usually test with short prompts and ideal conditions, so a 2.3x raw generation speed difference does not always translate into end to end latency improvement once a long system prompt and reasoning_effort settings are involved.

For background on how Azure OpenAI splits up latency, this is useful: https://learn.microsoft.com/en-us/azure/foundry/openai/how-to/latency

If after checking TTFT and confirming prompt caching is working you still see gpt-5.4-mini meaningfully slower than gpt-4.1-mini at the same PTU count, I would recommend opening a support ticket with your Request IDs and the metric screenshots, since at that point it becomes a backend or model specific behavior that needs the product team to investigate on their side.

If this answer helps you kindly accept the answer which will help others who have similar questions

Best Regards,

Jerald Felix.
