Tutorial: Deploy and configure Azure Firewall and policy in a hybrid network by using the Azure portal

When you connect your on-premises network to an Azure virtual network to create a hybrid network, you need to control access to your Azure network resources as part of your overall security plan.

Azure Firewall and Firewall Policy control network access in a hybrid network by using rules that define allowed and denied network traffic.

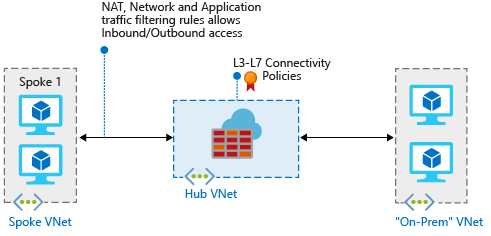

For this tutorial, you create three virtual networks:

• VNet-Hub - The firewall is in this virtual network.
• VNet-Spoke - The spoke virtual network represents the workload located on Azure.
• VNet-Onprem - The on-premises virtual network represents an on-premises network. In an actual deployment, you can connect it by using either a VPN or ExpressRoute connection. For simplicity, this tutorial uses a VPN gateway connection, and an Azure-located virtual network represents an on-premises network.

In this tutorial, you learn how to:

To use Azure PowerShell instead, see Deploy and configure Azure Firewall in a hybrid network using Azure PowerShell.

Prerequisites

A hybrid network uses the hub-and-spoke architecture model to route traffic between Azure virtual networks and on-premises networks. The hub-and-spoke architecture has the following requirements:

• To route the spoke subnet traffic through the hub firewall, use a user-defined route (UDR) that points to the firewall with the Virtual network gateway route propagation option disabled. The Virtual network gateway route propagation disabled option prevents route distribution to the spoke subnets. This option prevents learned routes from conflicting with your UDR. If you want to keep Virtual network gateway route propagation enabled, make sure to define specific routes to the firewall to override those routes that are published from on-premises over BGP.
• Configure a UDR on the hub gateway subnet that points to the firewall IP address as the next hop to the spoke networks. No UDR is required on the Azure Firewall subnet, as it learns routes from BGP.

To learn how these routes are created, see Create the routes in this tutorial.

If you don't have an Azure subscription, create a free account before you begin.

Create the firewall hub virtual network

First, create the resource group to contain the resources for this tutorial:

1. Sign in to the Azure portal.
2. On the Azure portal home page, select Resource groups > Create.
3. For Subscription, select your subscription.
4. For Resource group name, enter FW-Hybrid-Test.
5. For Region, select (US) East US. All resources that you create later must be in the same location.
6. Select Review + Create, and then select Create.

Next, create the virtual network:

1. From the Azure portal home page, select Create a resource.
2. Under Networking, select Virtual network, and then select Create.
3. For Resource group, select FW-Hybrid-Test.
4. For Name, enter VNet-hub.
5. On the Security tab, select Next.
6. For IPv4 Address space, enter 10.5.0.0/16.
7. Under Subnets, select default.
8. For Subnet purpose, select Azure Firewall.
9. For Starting address, enter 10.5.0.0/26.
10. Select Save, select Review + create, and then select Create.

Create a second subnet for the gateway.

1. On the VNet-hub page, select Subnets.
2. Select +Subnet.
3. For Subnet purpose, select Virtual Network Gateway.
4. For Starting address, enter 10.5.2.0/26.
5. Select Add.

Create the spoke virtual network

1. From the Azure portal home page, select Create a resource.
2. In Networking, select Virtual network, and then select Create.
3. For Resource group, select FW-Hybrid-Test.
4. For Name, enter VNet-Spoke.
5. For Region, select (US) East US.
6. Select Next. On the Security tab, select Next.
7. For IPv4 address space, enter 10.6.0.0/16.
8. Under Subnets, select default.
9. For Name, enter SN-Workload.
10. For Starting address, enter 10.6.0.0/24.
11. Select Save, select Review + create, and then select Create.

Create the on-premises virtual network

1. From the Azure portal home page, select Create a resource.
2. In Networking, select Virtual network, and then select Create.
3. For Resource group, select FW-Hybrid-Test.
4. For Name, enter VNet-OnPrem.
5. For Region, select (US) East US.
6. Select Next. On the Security tab, select Next.
7. For IPv4 address space, enter 192.168.0.0/16.
8. Under Subnets, select default.
9. For Name, enter SN-Corp.
10. For Starting address, enter 192.168.1.0/24.
11. Select Save, select Review + create, and then select Create.

Create a second subnet for the gateway.

1. On the VNet-OnPrem page, select Subnets.
2. Select +Subnet.
3. For Subnet purpose, select Virtual Network Gateway.
4. For Starting address, enter 192.168.2.0/24.
5. Select Add.

Configure and deploy the firewall

Deploy the firewall into the firewall hub virtual network.

1. From the Azure portal home page, select Create a resource.

2. Search for Firewall, select it from the results, and then select Create.

3. On Create a Firewall, use the following table to configure the firewall:

   Setting	Value
   Subscription	<your subscription>
   Resource group	FW-Hybrid-Test
   Name	AzFW01
   Region	East US
   Firewall tier	Standard
   Firewall management	Use a Firewall Policy to manage this firewall
   Firewall policy	Add new: hybrid-test-pol East US
   Choose a virtual network	Use existing: VNet-hub
   Public IP address	Add new: fw-pip

4. Select Next : Tags, Next: Review + create, and then Create.

   Deployment takes a few minutes.

5. After deployment finishes, go to the FW-Hybrid-Test resource group, and select the AzFW01 firewall.

6. Note the private IP address. You use it later when you create the default route.

Configure network rules

First, add a network rule to allow web traffic.

1. From the FW-Hybrid-Test resource group, select the hybrid-test-pol Firewall Policy.
2. Under Settings, select Network rules.
3. Select Add a rule collection.
4. For Name, enter RCNet01.
5. For Priority, enter 100.
6. For Rule collection action, select Allow.
7. Under Rules, for Name, enter AllowWeb.
8. For Source type, select IP address.
9. For Source, enter 192.168.1.0/24.
10. For Protocol, select TCP.
11. For Destination Ports, enter 80.
12. For Destination type, select IP address.
13. For Destination, enter 10.6.0.0/16.
14. Select Add.

Create and connect the VPN gateways

The hub and on-premises virtual networks connect through VPN gateways.

Create the VPN gateways

Create a VPN gateway for both the hub and on-premises virtual networks. Network-to-network configurations require a RouteBased VpnType. Creating a VPN gateway can often take 45 minutes or more, depending on the selected VPN gateway SKU.

Repeat the following steps for each gateway by using the values in the table.

1. From the Azure portal home page, select Create a resource.
2. In the search box, type virtual network gateway and press Enter.
3. Select Virtual network gateway, and select Create.
4. Enter the Name from the table.
5. For Region, select the same region that you used previously.
6. For Gateway type, select VPN.
7. For SKU, select VpnGw1.
8. Select the Virtual network from the table.
9. For Public IP address, select Create new, and enter the name from the table.
10. For Second Public IP address, select Create new, and enter the name from the table.
11. Accept the remaining defaults, select Review + create, and then select Create.

Create the VPN connections

Create the VPN connections between the hub and on-premises gateways. You need a connection from each direction, and the shared key must match for both.

Repeat the following steps for each connection by using the values in the table.

1. Open the FW-Hybrid-Test resource group and select the gateway from the table.
2. Under Settings, select Connections in the left column.
3. Select Add.
4. Enter the Connection name from the table.
5. Select VNet-to-VNet for Connection type.
6. Select Next : Settings.
7. Select the First virtual network gateway and Second virtual network gateway from the table.
8. For Shared key (PSK), enter AzureA1b2C3.
9. Select Review + create, and then select Create.

Verify the connection

After about five minutes, the status of both connections should be Connected.

Peer the hub and spoke virtual networks

Peer the hub and spoke virtual networks.

1. Open the FW-Hybrid-Test resource group and select the VNet-hub virtual network.

2. In the left column, select Peerings.

3. Select Add.

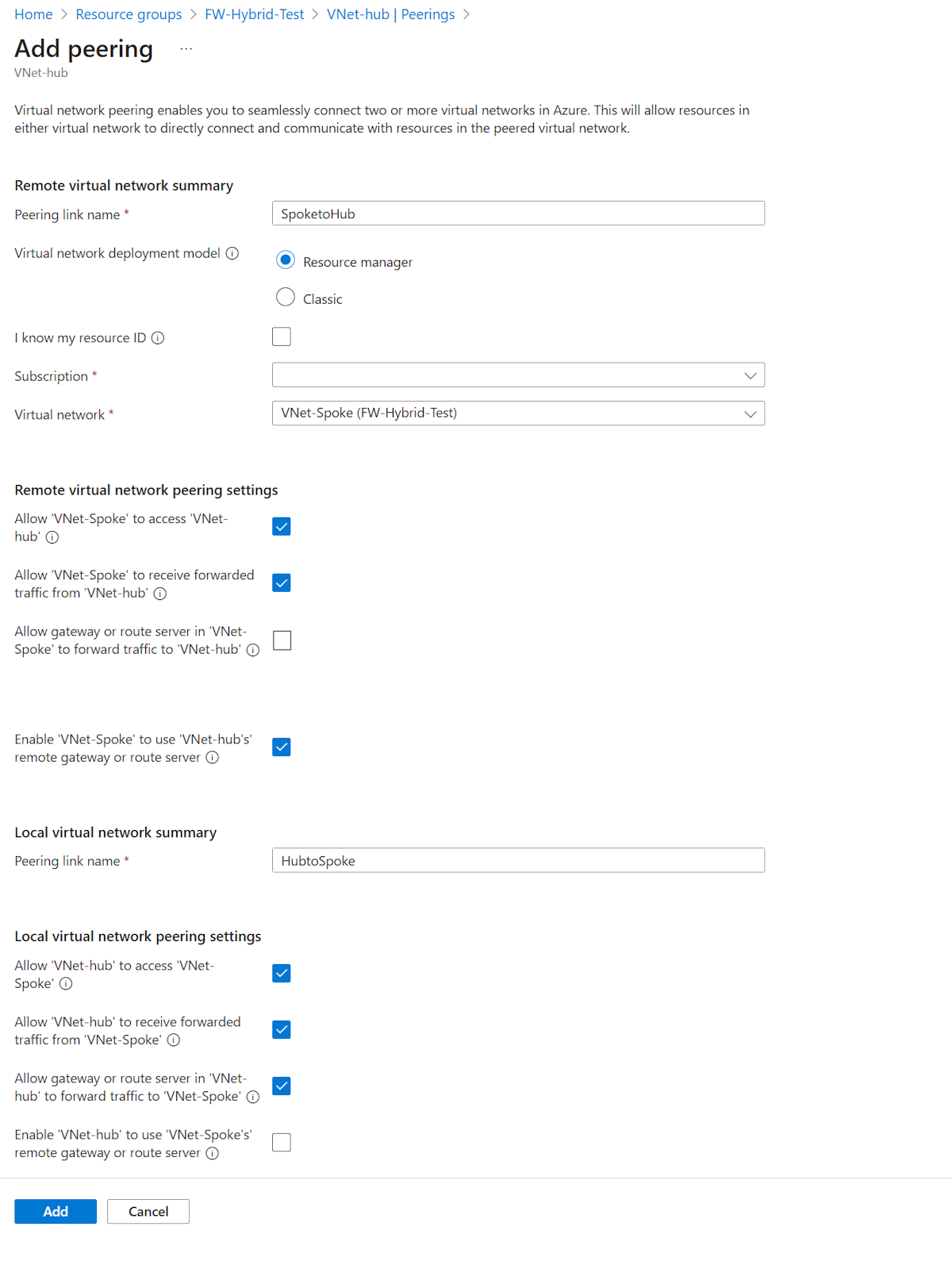

4. Under Remote virtual network summary:

   Setting name	Value
   Peering link name	SpoketoHub
   Subscription	<your subscription>
   Virtual network	VNet-Spoke
   Allow 'VNet-Spoke' to access 'VNet-hub'	selected
   Allow 'VNet-Spoke' to receive forwarded traffic from 'VNet-Hub'	selected
   Allow gateway or route server in 'VNet-Spoke' to forward traffic to 'VNet-Hub'	not selected
   Enable 'VNet-Spoke' to use 'VNet-hub's' remote gateway or route server	selected

5. Under Local virtual network summary:

   Setting name	Value
   Peering link name	HubtoSpoke
   Allow 'VNet-hub' to access 'VNet-Spoke'	selected
   Allow 'VNet-hub' to receive forwarded traffic from 'VNet-Spoke'	selected
   Allow gateway or route server in 'VNet-Hub' to forward traffic to 'VNet-Spoke'	selected
   Enable 'VNet-hub' to use 'VNet-Spoke's' remote gateway or route server	not selected

6. Select Add.



Create the routes

Next, create two route tables:

• A route from the hub gateway subnet to the spoke subnet through the firewall IP address
• A default route from the spoke subnet through the firewall IP address

Repeat the following steps for each route table by using the values in the table.

1. From the Azure portal home page, select Create a resource.
2. In the search box, type route table and press Enter.
3. Select Route table, and then select Create.
4. Select FW-Hybrid-Test for the resource group.
5. For Region, select the same location that you used previously.
6. Enter the route table Name from the table. If applicable, set Propagate gateway route to No.
7. Select Review + Create, and then select Create.
8. After the route table is created, select it to open the route table page.
9. Under Settings, select Routes in the left column.
10. Select Add.
11. Enter the Route name from the table.
12. For Destination type, select IP Addresses.
13. Enter the Destination IP addresses/CIDR ranges from the table.
14. For Next hop type, select Virtual appliance.
15. For Next hop address, type the firewall's private IP address that you noted earlier.
16. Select Add.

Associate each route table to its subnet.

1. On the route table page, select Subnets.
2. Select Associate.
3. Select the Virtual network and Subnet from the table.
4. Select OK.

Create virtual machines

Create the spoke workload and on-premises virtual machines, and place them in the appropriate subnets.

Create the workload virtual machine

Create a virtual machine in the spoke virtual network, running NGINX, with no public IP address.

1. From the Azure portal home page, select Create a resource.
2. Under Popular Marketplace products, select Ubuntu Server 24.04 LTS.
3. Enter these values for the virtual machine:
   • Resource group - Select FW-Hybrid-Test
   • Virtual machine name: VM-Spoke-01
   • Region - Same region that you used previously
   • Image - Ubuntu Server 24.04 LTS - x64 Gen2
   • Size - Standard_B2s
   • Authentication type - SSH public key
   • Username: azureuser
   • SSH public key source - Generate new key pair
   • Key pair name - VM-Spoke-01_key
4. For Public inbound ports, select None.
5. Select Next: Disks, accept the defaults, and then select Next: Networking.
6. Select VNet-Spoke for the virtual network and the subnet is SN-Workload.
7. For Public IP, select None.
8. Select Next: Management, and then select Next: Monitoring.
9. For Boot diagnostics, select Disable.
10. Select Review + Create, review the settings on the summary page, and then select Create.
11. On the Generate new key pair dialog, select Download private key and create resource. Save the key file as VM-Spoke-01_key.pem.

Install Nginx

After you create the virtual machine, install the Nginx web server.

1. From the Azure portal, open the Cloud Shell and make sure that it's set to Bash.

2. Run the following command to install Nginx on the virtual machine:

   az vm run-command invoke \
      --resource-group FW-Hybrid-Test \
      --name VM-Spoke-01 \
      --command-id RunShellScript \
      --scripts "sudo apt-get update && sudo apt-get install -y nginx && echo '<h1>'$(hostname)'</h1>' | sudo tee /var/www/html/index.html"


Create the on-premises virtual machine

Use this virtual machine to connect by using Azure Bastion. From there, you connect to the spoke server through the firewall.

1. From the Azure portal home page, select Create a resource.
2. Under Popular Marketplace products, select Ubuntu Server 24.04 LTS.
3. Enter these values for the virtual machine:
   • Resource group - Select existing, and then select FW-Hybrid-Test.
   • Virtual machine name - VM-Onprem.
   • Region - Same region that you used previously.
   • Image - Ubuntu Server 24.04 LTS - x64 Gen2
   • Size - Standard_B2s
   • Authentication type - SSH public key
   • Username: azureuser
   • SSH public key source - Generate new key pair
   • Key pair name - VM-Onprem_key
4. For Public inbound ports, select None.
5. Select Next: Disks, accept the defaults, and then select Next: Networking.
6. Select VNet-Onprem for virtual network and the subnet is SN-Corp.
7. Select Next: Management, and then select Next: Monitoring.
8. For Boot diagnostics, select Disable.
9. Select Review + Create, review the settings on the summary page, and then select Create.
10. On the Generate new key pair dialog, select Download private key and create resource. Save the key file as VM-Onprem_key.pem.

Deploy Azure Bastion

Deploy Azure Bastion to provide secure access to the virtual machine.

1. On the Azure portal menu, select Create a resource.

2. In the search box, type Bastion and select it from the results.

3. Select Create.

4. On Create a Bastion, configure the following settings:

   Setting	Value
   Subscription	Select your subscription
   Resource group	FW-Hybrid-Test
   Name	Hub-Bastion
   Region	Same as your other resources
   Tier	Developer
   Virtual network	VNet-hub

5. Select Review + create. After validation passes, select Create.

Test the firewall

1. First, note the private IP address for VM-spoke-01 virtual machine.

2. From the Azure portal, go to the VM-Onprem virtual machine.

3. Select Connect > Connect via Bastion.

4. Select Use SSH Private Key from Local File.

5. For Username, enter azureuser.

6. Browse to and select the VM-Onprem_key.pem file you downloaded earlier.

7. Select Connect.

8. From the SSH session on VM-Onprem, test the web server on the spoke virtual network:

   curl http://<VM-spoke-01 private IP>


   The web server returns a response.

Next, change the firewall network rule collection action to Deny to verify that the firewall rules work as expected.

1. Select the hybrid-test-pol Firewall Policy.
2. Select Rule Collections.
3. Select the RCNet01 rule collection.
4. For Rule collection action, select Deny.
5. Select Save.

Run the test again. This time, the test fails.

Clean up resources

Keep your firewall resources for the next tutorial, or if you no longer need them, delete the FW-Hybrid-Test resource group to delete all firewall-related resources.

Next steps
