Tutorial 1-5: Create enclave or community endpoint resources in Azure Enclave

Community endpoints enable enclaves in a community to establish connections to resources outside of the community boundary to include public websites, public IP addresses, and external private networks through Site-to-Site (S2S) VPN or ExpressRoute connections. Enclave endpoints enable others to connect to your service by defining the means by which inbound traffic is allowed to flow into a given enclave once a connection is made.

In this tutorial, part six of eight, you create community and enclave endpoint resources. You learn how to:

  • Create community endpoint resources in communities
  • Create enclave endpoint resources in enclaves
  • View your endpoints in Azure portal

Before you begin

In the previous tutorials, you created a community and an enclave using the Azure portal.

Create an enclave endpoint

  1. Navigate to an enclave hosting a service you want to make available to other enclaves in the community

  2. While in your enclave's page, select Enclave Endpoints on the left side, and select Create.

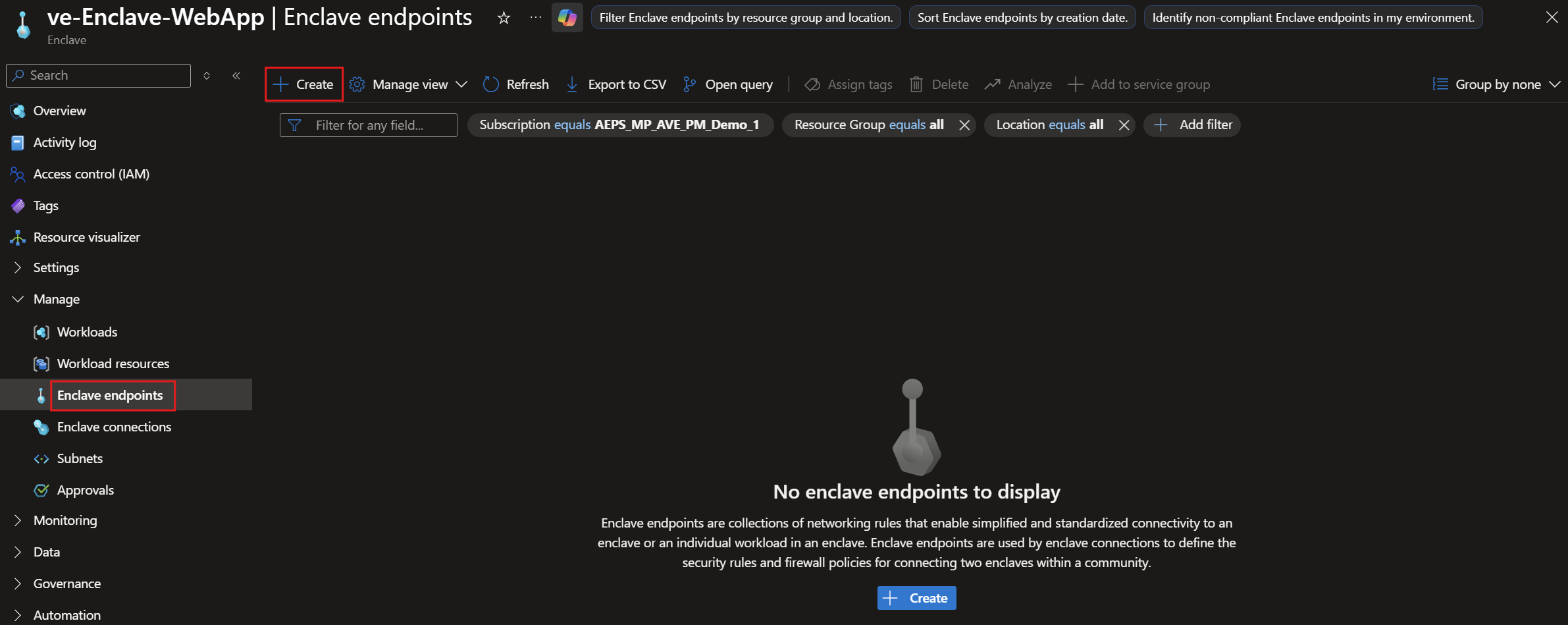

    Screenshot showing the highlighted create button for enclave endpoints.

  3. Enter your enclave endpoint name and then select Next:

    • Enclave endpoint name: Name of the enclave endpoint ee-MyService

  4. Enter the endpoint rules for your app:

    • Select + Add to add Endpoint Rules that represent how to access your app
      • Rule Name: WebAppEndpointRules
      • Destination IP/CIDR range: <See the information box that gives your enclave webapp-subnet range (for example 10.0.2.0/26) and make sure there are no commas at the end>
      • Protocol: ANY
      • Port: 443

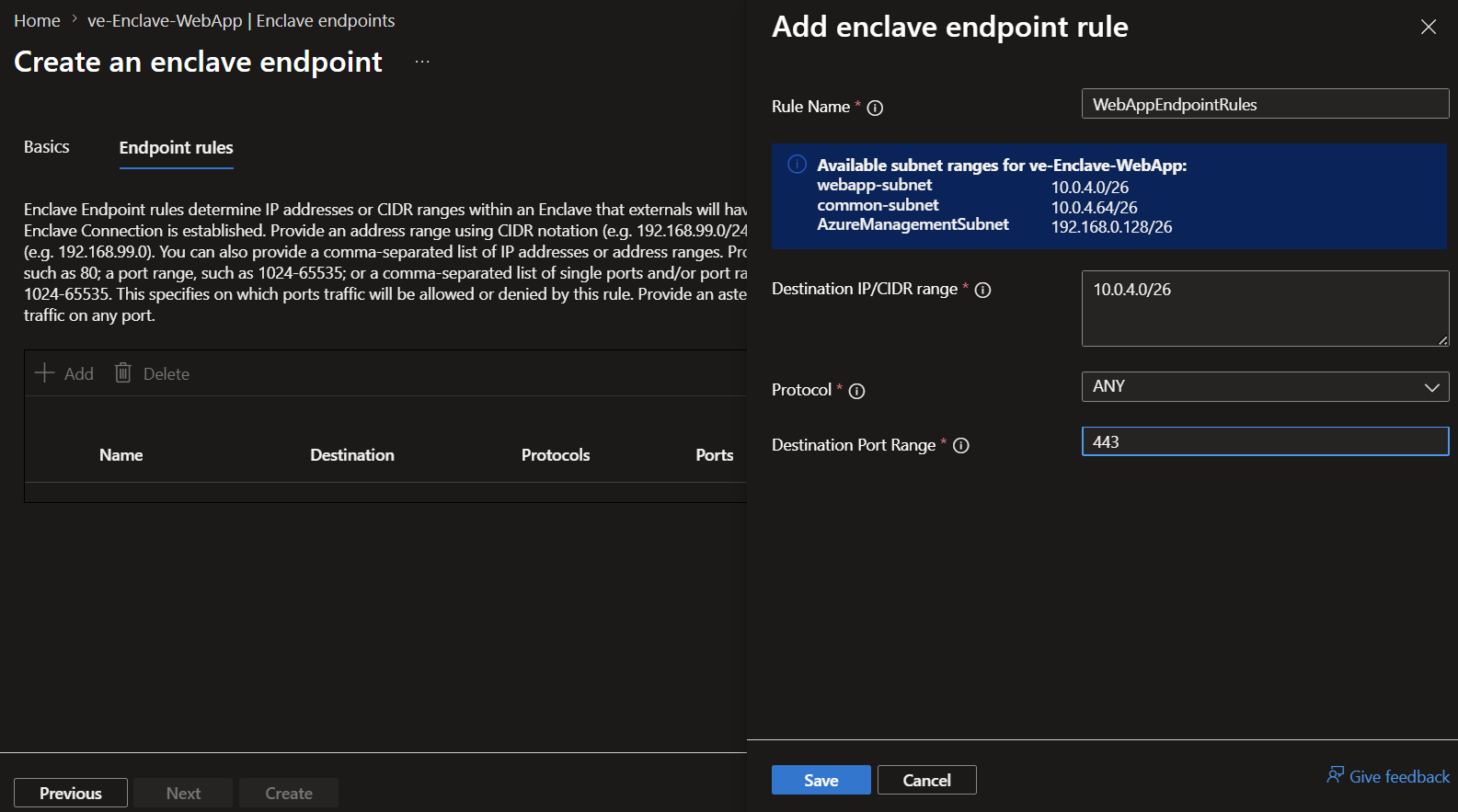

    Screenshot showing the enclave endpoint creation screen with endpoint rule dialog open as well.

  5. Select Save, select Review + Create, and select Create

  6. Once the endpoint resource is created, you can view them in Azure portal from the Enclave-WebApp Enclave Endpoints.

    Screenshot showing the completed enclave endpoint overview page.

Create a community endpoint

  1. Go to the fabrikam community and select Community Endpoints, and then select Create.

    Screenshot showing no existing community endpoints.

  2. Enter the community endpoint name and then select Next:

    • Community endpoint name: ce-fabrikam-website

  3. Enter the endpoint rules for your app:

    • Select + Add to add Endpoint Rules that represent how to access your app
      • Rule Name: Website-Rule
      • Destination Type: FQDN
      • Destination: *microsoft.com
      • Protocol: HTTPS
      • Port: 443

    Screenshot showing the creation page for the community endpoint with the required inputs.

  4. Select Save, select Review + Create, and select Create.

  5. Once the endpoint resource is created, you can view them in Azure portal from the Enclave-WebApp enclave endpoint page.

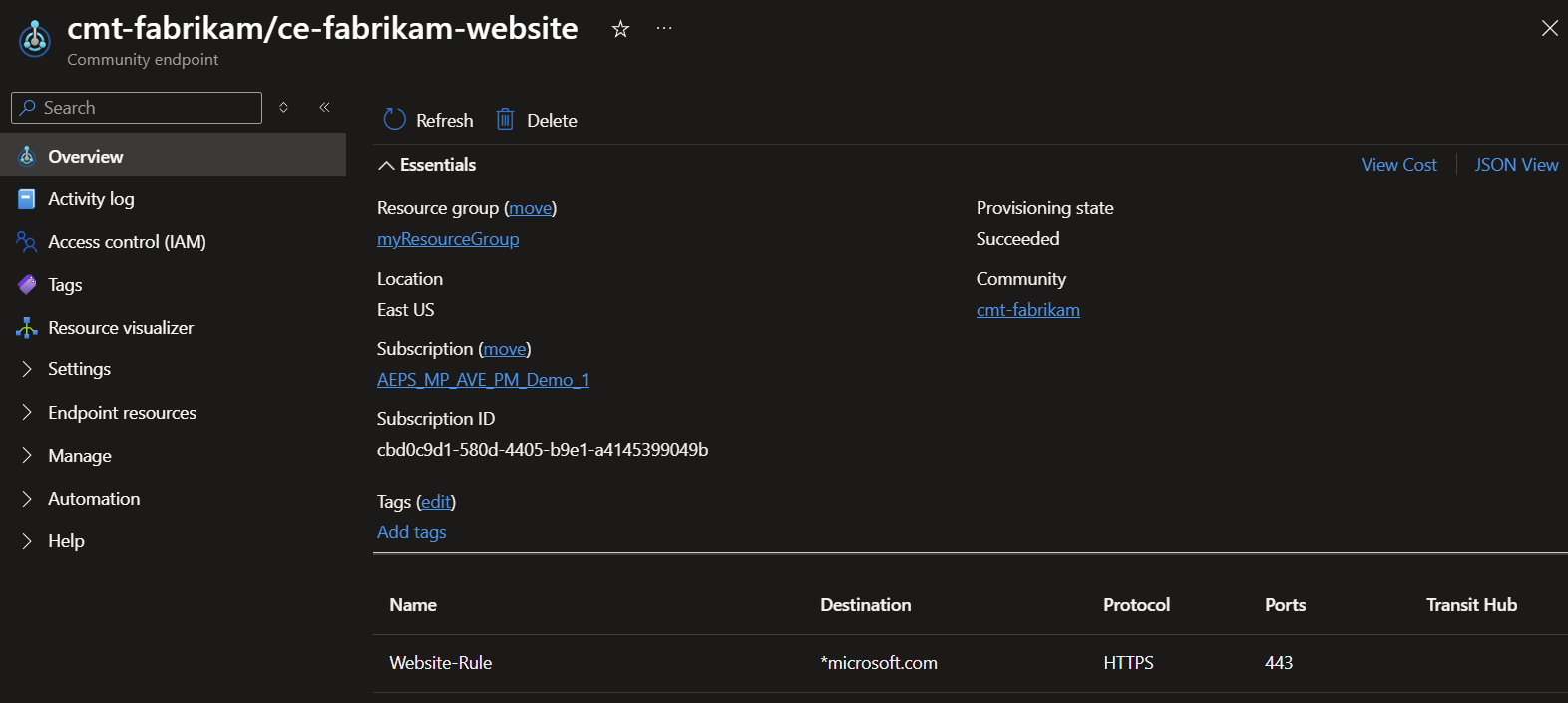

    Screenshot showing the completed community endpoint.

Create an enclave connection

Create an enclave connection from the web app enclave to the community endpoint so the app can reach required site outside the community.

  1. From the cmt-fabrikam community, select Enclave Connections, then select Create.

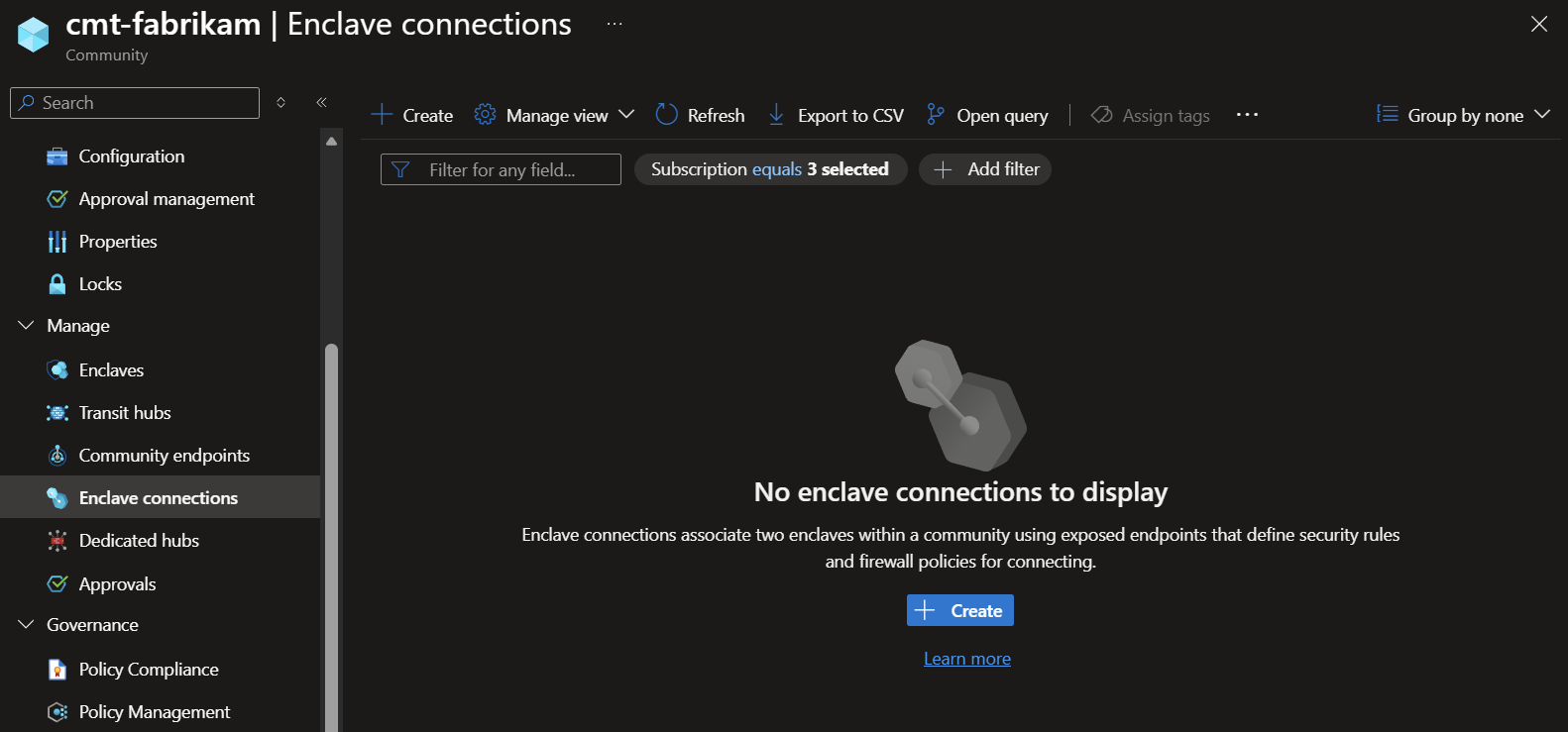

    Screenshot showing no existing enclave connections.

  2. Enter the details for your app/service

    • Resource Group: myResourceGroup
    • Enclave connection name: Name of the connection ec-fabrikam-external-connection
    • Community: Select cmt-fabrikam from the dropdown
    • Source Type: Select Enclave
    • Source enclave: Select ve-Enclave-WebApp from the dropdown
    • Source IP addresses/CIDR range(s): <See the information box that gives your enclave subnet range (for example 10.0.2.0/26) and make sure there are no commas at the end>
    • Destination Endpoint Type: Select Community Endpoint
    • Destination endpoint: Select ce-fabrikam-website from the dropdown

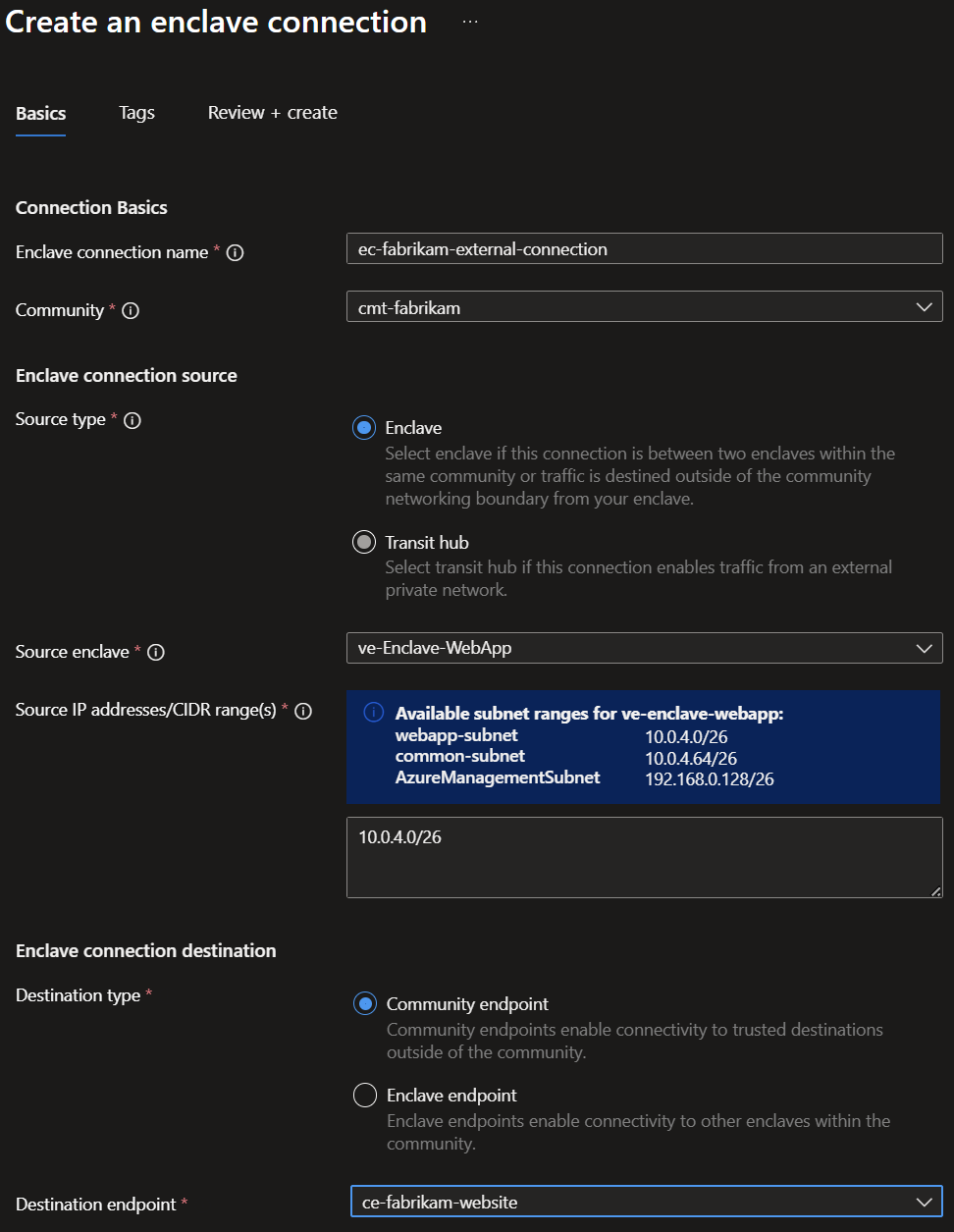

    Screenshot showing the required information entered into the enclave connection page.

  3. Select Review + Create and then Create

    Screenshot showing the deployment finished and the connection is waiting for an approval.

  4. Once the endpoint resource is created, you can view them in Azure portal from the cmt-fabrikam Enclave Connections. However, it's in a disconnected state because the community requires approvals on all new enclave connections and updates to those connections.

    Screenshot showing the enclave connection created but in a disconnected state while pending approval.

  5. Review the pending approvals in Approvals on the left for the enclave.

    Screenshot showing the pending connection approval.

  6. Approve the pending approvals and the connection state is automatically updated to the connected state. For more information about reviewing approval requests, see Manage approval requests. For resource-type approval settings, see Configure approval settings.

Next steps

In this tutorial, you deployed community and enclave endpoints using Azure portal. You also learned how to:

In the next tutorial, you'll learn how to create connections using these endpoints.
