Tutorial 1-4: Create Azure resources from the service catalog in an Azure Enclave workload

The service catalog enables you to deploy Azure services and streaming applications into Azure Enclave quickly while being compliant with Policy Guardrails and enclave isolation requirements.

In this tutorial, part four of eight, you create Azure resources using service catalog in workloads. You learn how to:

• Deploy a service catalog template for an Azure resource into an existing workload from the Portal

Before you begin

• This tutorial assumes a basic understanding of networking and Azure Enclave concepts. For more information, see Best practices for Azure Enclave.
• You need an Azure account with an active subscription. If you don't have one, create an account for free.
• You need a community, enclave, workload, and at least one workload resource group and permissions to create resources inside the workload resource group.
• Complete the prerequisites for an App Service Web App. Including subnet delegation for the

Enable enclave maintenance mode

1. Navigate to the ve-Enclave-WebApp enclave and select Maintenance Mode.

2. Enter the information needed to enable maintenance mode:

   • Maintenance Mode: Select General
   • Principals: Select Choose Microsoft Entra principal and enter your username
   • Justification: Select Networking
   • Select Save

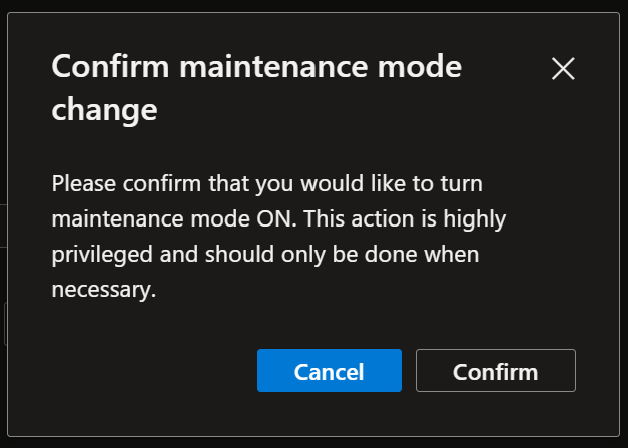

3. Select Confirm and allow a few minutes for the enclave to return to Succeeded state.



Create App Service required resources

1. Navigate to the wl-webapp-frontend workload to create an Azure App Service for your webapp.

2. Select Add an Azure service button on the overview page.

3. Select Private DNS Zones from the service catalog dropdown list and select Next.



4. Create the private DNS zone:

   1. For Resource groups, select wl-webapp-frontend.
   2. For Additional Private DNS Zone Names, enter the private DNS zone name for App Service ["privatelink.azurewebsites.net"]. You might need to use a different value depending on the Azure cloud you're using.
   3. Select Review + Create then Create.

Create Azure web app resources from the service catalog

1. Navigate to the wl-webapp-frontend workload to create an Azure App Service for your webapp.

2. Select Add an Azure service button on the overview page.

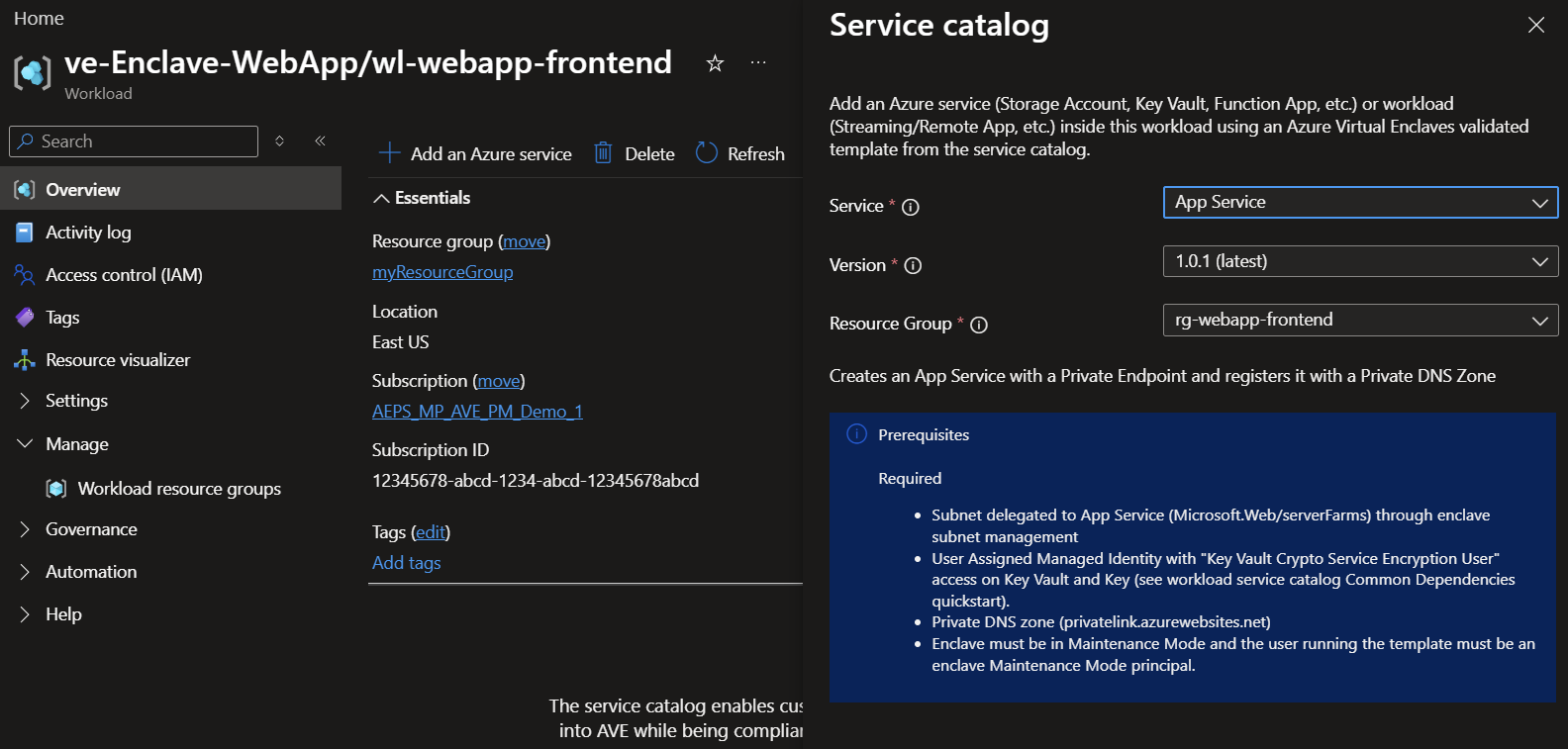

3. Select App Service from the service catalog dropdown list and select Next.

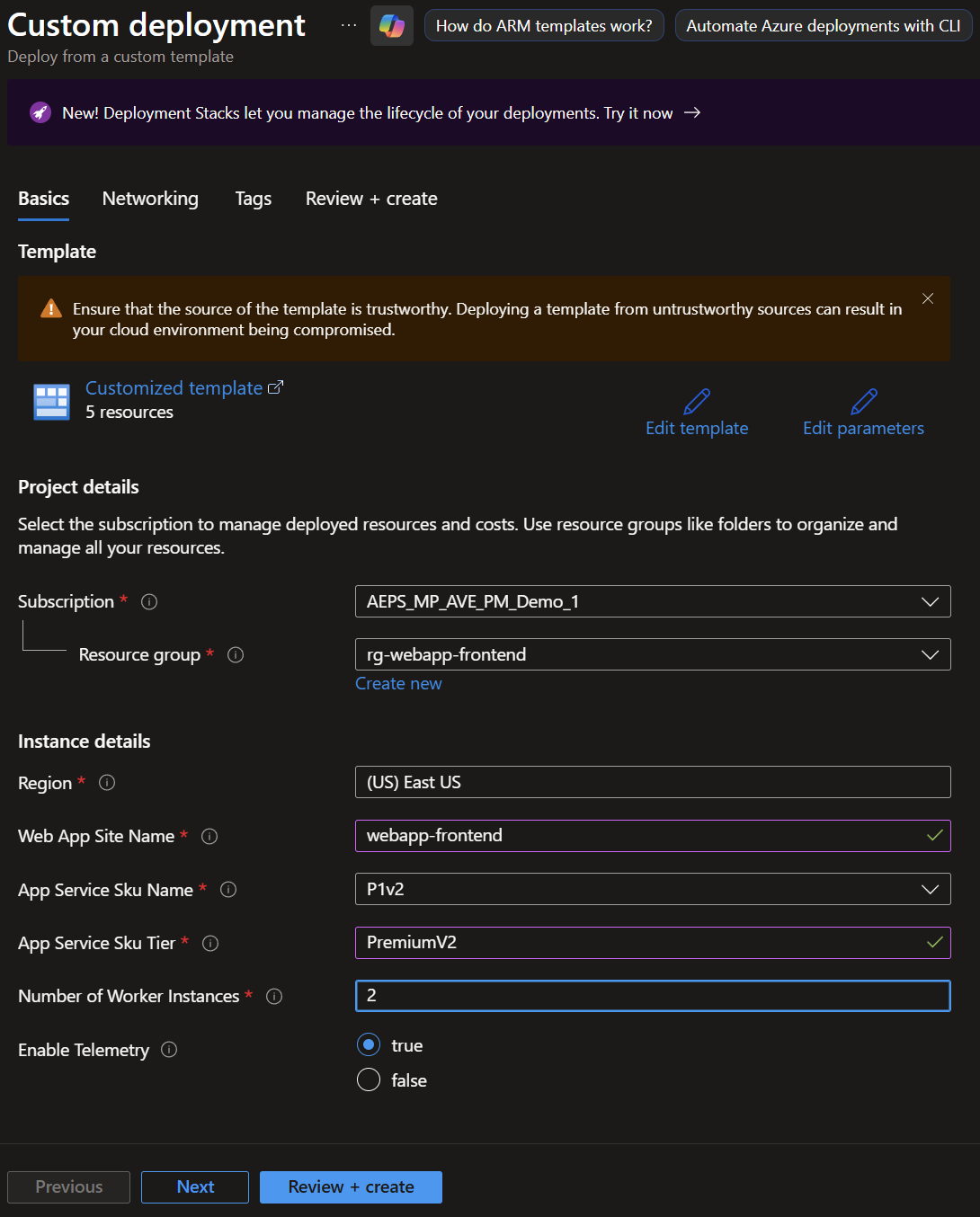

4. Enter all the required parameters on each tab.

   • Web App Site Name: Enter webapp-frontend-fabrikam
   • App Service Sku Name: Select an option from the dropdown, P1v2, or the lowest option for this tutorial. See this table for a full list of options: https://azure.microsoft.com/pricing/details/app-service/linux/#pricing
   • App Service Sku Tier: Enter PremiumV2.
   • Number of Worker Instances: Enter 2.

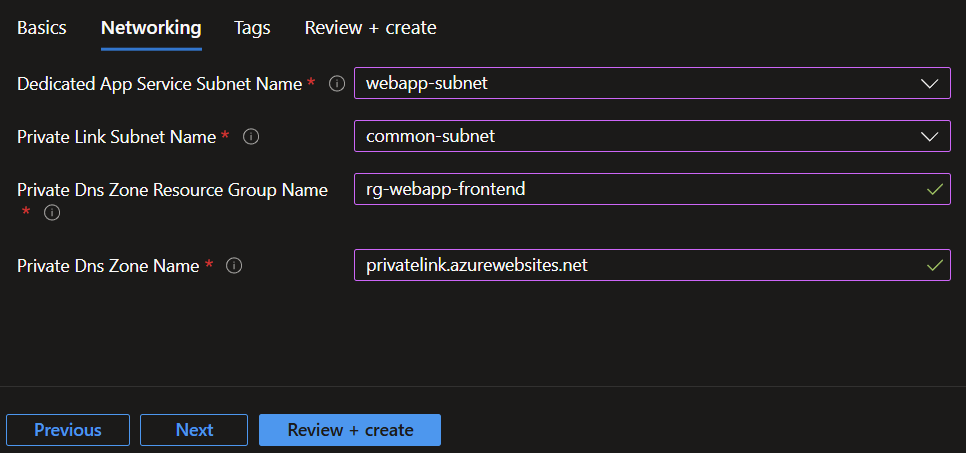

5. Select Next then enter the networking information. Ensure the App Service subnet has a delegation to 'Microsoft.Web/serverfarms' and the private link subnet doesn't.

   • Dedicated App Service Subnet Name: Enter webapp-Subnet for the subnet delegated in the previous step.
   • Private Link Subnet Name: Enter common-subnet for the subnet containing the private endpoints.
   • Private Dns Zone Resource Group Name: Enter rg-webapp-frontend.
   • Private Dns Zone Name: Enter privatelink.azurewebsites.net for App Service.



6. Select Review + Create and then Create.

   Wait for the deployment to complete successfully before you take any actions within your deployed resources.



Validate the deployment

Go to the specified resource group to confirm the intended resources were created.

Deploy Web App Quickstart (Optional)

Azure App Service has quickstarts for many languages such as the python quickstart or deploy from a zip file

Clean up resources

If you don't plan on keeping these resources, clean up unnecessary resources to avoid Azure charges. If no other deployments exist in the resource group, the whole resource group can be deleted or all App Service resources can be selected and deleted.

Recommendations

• Review an architecture example for a basic web application
• Add tags to service catalog deployments to track important information for that resource such as:
  • Owner: main POC
  • Deployer: yourName
  • Purpose: publish abc app to users
  • Service Catalog Name: Virtual Machine
  • Service Catalog Version: version you deployed
• Consider adding an Azure Policy to enforce and inherit tags

Next steps

In this tutorial, you created Azure resources with service catalog using Azure portal.

In the next tutorial, you'll learn how to create Azure resources in your enclave.
